Key Specification

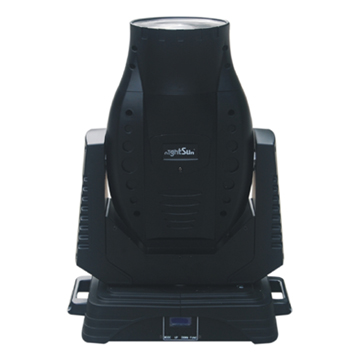

Moving Head Light, Spot Light
YT8801A
TECHNICAL REFERENCE

Voltage: 90V-264V/47Hz-63HZ)(make according to customer's demand)
Ballast: Magnetic induction electron
Light bulb: HMI1200W
Total power consumption: 1400W
Signal: DMX 512
Channel: 18
ProductsSize:530x430x810mm
Net Weight:53KG
Motors: 16

Performance characteristics

Self-checking independtenly, automatic reposition
Remote control DMX address function to demonstrate erectness,headstand, open and closure and the DMX signal to control on and off of light
The function of aperture size adjustment
8 main colors +8 mix colors, may make the high speed unidirectional rolling effect
0-100% mechanical linear dimmer
1-7/second supervelocity strobe adjustment effect
Level 540 degrees,vertical 250 degree scanning range, smooth scanning action and accurate orientation
Precise speed adjustment on horizontal and vertical position and speed adjustable
Each channel has vector mode function
8 fine gobos(4 fixed and 4 rotary )
The revolving designs may adjust in direction and speed
The angle of revolving design may adjust independently
Uses the limitless enlargement focal variation function 13 degrees - 32 degrees, may adjust willfully
The prism has free revolving function on both sides
Six convenction cooling -fan, the cold air injects the light bulb from the lamp head to give off heat,it extends the longevity of the parts of light head which works in low temperature.It also guarantees the heat of light to be dischanged immediately, the entire lamp body to work at designed temperature range.It has built-in overheat protection and it radiates well
PFC power compensation, could work even when voltage fluctuates (±10V)
Conforms to various standards of security,IP20 protection rank.The cable conforms to CE20/22 standard
Quick and simple installment, uses a group of 1/4 revolving lock,it's stable and safe
