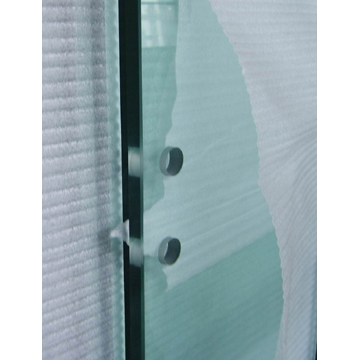

12.38mm Laminated Tempered Glass

Key Specification

Laminated glass, is a kind of security compound glass made by sealing two or more pieces of glass together with PVB film through the process of heating and pressurization. The shape of the glass can be flat or curved.The laminated glass has 2 layers,3 layers,5 layers, 7 layers, or more.

Function and Characteristic:

1.  Security: because of  the agglutinated function of the PVB film, when the glass is broken, only bring into radiation-like crackle, the fragment will not scatter out. It is safe and can not hurt people. So, it is widely used in the windshield glass for automobiles.

2.  Sound insulating : With a good damping function for sound wave, laminated glass is a favorable sound insulating material.

3.  Energy saving:  Laminated glass has better thermal performance than normal glass. Combined with insulating glass, laminated glass can achieve even better sound reduction effect and thermal insulation performance. Apparently, it is an ideal and safe energy-saving product.

4. U.V. Filtering : The interlayer can filter out ultra-violet rays, so that can prevent the indoor or objects such as furniture from fading.

5. Wider variety of color and patterns to choose for better decoration effect: PVB interlayer can be in various colors to meet with architect’s design intent and decoration requirements. It can also control transmittance of solar energy and reduce indoor air-condition load.

Specification:

• Max size: 2650x6500mm
• Min size: 150mm*150mm

• Max size: 2000x3000mm
• Min size: 300x400mm

Application:

• Architectural door, window, ceiling, floor, partitions, stair-steps, handrails,railings, awnings and curtain wall glass.
• Ships and automobile windshield glass.
• Bullet/violence- resistant glass for financial places, exhibitions hall, hospital and jail,etc.
• Safety glass for furniture.

• ---
