Model Number: LED Strip Light - 001
Seller: Ledwalker Technology Co., Ltd.
DMX Flexible Strip Light,32pcs SMD RGB 5050, 16pixels, 48DMX channels, DC12V, 12W. Both single color and RGB version are available
Contact NowDMX Flexible Strip Light, 1M RGB Flexible Strip
| Model: | LW-RGBFS100-D3216 |
|---|---|
| Product Approvals: | CE,RoHS |
| Brand Name: | Ledwalker |
| Brief Description: | DMX Flexible Strip Light,32pcs SMD RGB 5050, 16pixels, 48DMX channels, DC12V, 12W. Both single color and RGB version are available |
| Light Source: | LED Lamp |
| Length: | 1M |
| Voltage: | DC12V |
| Pixel QTY: | 16 pixels |
| LED QTY: | 32PCS SMD 5050 |
Key Specification
- DMX Flexible Strip Light
- Both single color and RGB version are available
- Apply 32pcs SMD RGB 5050 on strip, 16 pixels per meter, usually 5 meters as one reel.
- Water proof silicone tube out side ，or drip gum to be waterproof;IP65 or non waterproof with the 3M tape.
- With Led walker RGB controller LW-M1-IIC2801, or LW-M1-DMX512, LW-DMX-U1 it can realize hundreds of patterns of color synchronization, sequence, chasing, rolling, cross fading or strobe effects
- Support standard DMX512 controller and software
-
Parameter Description LED Model LW-RGBS100-I3216 LW-RGBS100-D3216 LED control mode SPI (WS2801IC) DMX512 Control load 1024 pixels per universe
64 meters per universe170 pixels per universe
10 meters per universeLED Qty 32pcs RGB 5050SMD per meter 32pcs RGB 5050SMD per meter DMX Channels 48 DMX Channels/Meter
240 DMX Channels/Roll48 DMX Channels/Meter
240 DMX Channels/RollPixel Qty 16 Pixels/ Meter
80Pixels/Roll16 Pixels/ Meter
80Pixels/RollLED Pitch 62.5mm(one pixel 2 leds) 62.5mm(one pixel 2 leds) LED Distance 31.25mm 31.25mm Operation voltage DC12V DC12V Power
Consumption<12W / Meter
<60W / Roll<12W / Meter
<60W / RollPCB color White/Brownor other PCB width 12mm Humidity range 0-95% non condensing Waterproof rate IP20 / IP65 LED source life 50,000h Temperature -20°Cto 50°C
| Payment Terms | L/C, T/T, Others |
|---|---|
| Minimum Order | 1PC |
| Lead Time Delivery Time | 5 days |
| Sample Available | Yes |
| FOB Port | Shenzhen |
| Loading Info | express, air, ocean |
| Packing Info | one reel in one sealed package |
| Target Market(s) | Eastern Europe, Hong Kong/ Macao/ Taiwan, North America, Northern Europe, Western Europe |
Related products

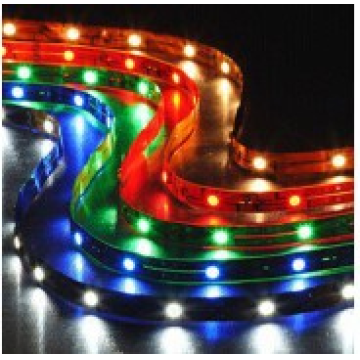

Attractive LED Strip - Manufacturer Chinafactory.com
Model Number: LED Strip Light - 014
5050 LED Strip Lights, LED for each three groups, each individually cut does not affect other groups to use energy-efficient

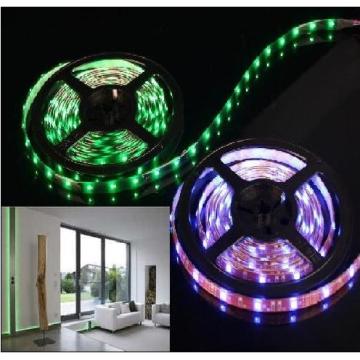

Flexible Single Side View LED Strip Lights - Chinafactory.com
Model Number: LED Strip Light - 018
5050 LED Strip Lights, LED for each three groups, each individually cut does not affect other groups to use energy-efficient

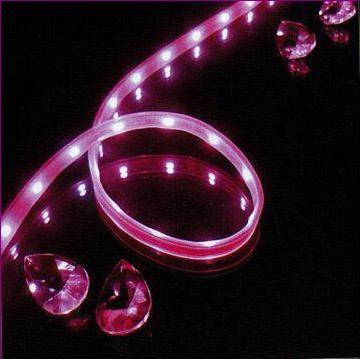

Fluorescent Strip Lights - Manufacturer Chinafactory.com
