High Resolution CMOS Outdoor IR Camera - Chinafactory.com

High Resolution CMOS Outdoor IR Camera

Model:	C138516
Product Approvals:	RoHS,EMC, CE, FCC
Brief Description:	High Resolution CMOS Sensor with 600TVL resolution and Dual flitter cut provide excellent image and clear night vision

Key Specification

High resolution 600TVL and advanced ir-cut technology
Delicate appearance with cable through bracket
Dual-filter auto switch between daylight or night version
IP66 weather proof housing
Night vision distance 100 feet
Economic cost and fast delivery

Specification:

Image Sensor	High Resolution 1/3" Color CMOS
Total number of Pixels	NTSC/PAL:762(H)×504(V)
Effective Pixel Array	NTSC/PAL:728(H)×488(V)
Horizontal Resolution	600TV Lines
External Sync(Gen Lock)	Support
Sync System	Internal
Scanning System	Interlace 2:1
50/60 Hz Flicker	Automatic Cancellation
Electronic Shutter	NTSC: 1/60s~ 1/100,000s PAL: 1/50s~ 1/100,000s
White Balance	Auto
Gamma	0.45
S/N Ratio	?48dB
Video Output	1.0Vp to p75?, BNC connection
Usable Illumination	0 lux(When IR LEDs on) Ultra low light performance
Waterproof level	IP66
IR LEDs Amount	36pcs ?5LED
IR Wavelength	850nm
IR Distance	65ft (20m)
IR LEDs Auto ON/OFF	Day/Night
AGC	Auto
BLC	Auto
Lens	Fixed 4.8mm Lens
Embedded Moving IR Filter	Dual-filter Day & Night, Auto Switching, Anti- Glare
Power Supply	DC12V/500mA
Power Consumption	<6W (When IR LEDs on)
Operating Temperature		14°F to122°F (-10 ~ 50 ?) RH 95%Max

Window. parent. CKEDITOR. tools. call Function( 12, window );

Window.parent. CKEDITOR. tools. call Function( 12, window );

Payment Terms	L/C, T/T, Others
Minimum Order	500PCS
Lead Time Delivery Time	15 days
Sample Available	Yes
Delivery Details	After 100% payment received
FOB Port	Zhuhai
Loading Info	Vessel
Target Market(s)	Africa, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, South Asia, Southeast Asia, Western Europe

Related products

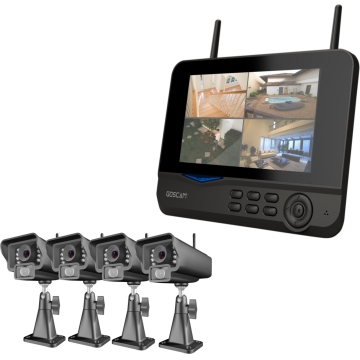

Outdoor Surveillance Cameras - Manufacturer Chinafactory.com

Model Number: Surveillance Camera System-007
Wireless AV transmission for home/business surveillance Provide image/video compression and storage Motion detect and recording Weather-proof day/night camera for all-day usage Mini size camera for observation and portable Adapted to TV, monitor, pa

Contact Now

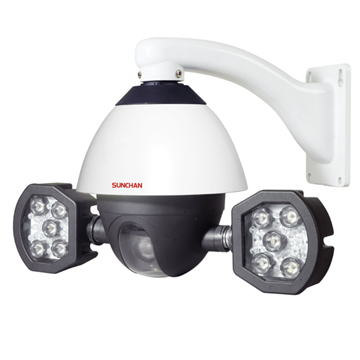

Outdoor Color PTZ Camera - Manufacturer Chinafactory.com
