Weather proof Outdoor Color IR Camera - Chinafactory.com
High Resolution CCD Camera; Sony Effio DSP, 700TVL, weather proof housing IP66.
Contact NowWeather proof Outdoor Color CCD Effio High Resolution Array IR Camera
| Model: | C170146 |
|---|---|
| Brief Description: | High Resolution CCD Camera; Sony Effio DSP, 700TVL, weather proof housing IP66. |
| Array LED: | Sony Effio DSP |
| High Resolution: | Outdoor weather proof |
Key Specification
- High Resolution CCD Camera; Sony Effio DSP, 700TVL, weather proof housing IP66; with Fixed 16mm l Lens, 2xArray IR LEDs with IR distance 330 feet (100M), with Wired Control OSD function
- Advanced Sony Effio DSP solution
- High resolution 700TVL
- 2xArray LED provide 100M IR Distance
- Weather proof housing and cable through bracket
- Delicate appearance with cable through bracket
Specification:
| Model No | C170146 |
| Image Sensor | 1/3 Sony EX-view HAD CCD II (NTSC: ICx672, PAL: ICx673) |
| DSP | Effio DSP (CXD4127) |
| Effective Pixels | PAL: 976(H)x582(V) NTSC: 976(H)x494(V) |
| Horizontal Illumination | 600TVL |
| Lens | Fixed 12mm/16mm Lens Optional |
| IR Leds | 2xArray Leds |
| IR Wave Length | 850nm |
| IR Distance | 330 Feet (100M) |
| Shutter Speed | PAL:1/50~1/100000s; NTSC: 1/60~1/100000s adjustable |
| S/N Ratio | More than 52 dB(AGC OFF) |
| Video Output | 1.0Vp-p,75 ohms, BNC |
| Minimum Illumination | Color: 0.01Lux(F1.2,50IRE,AGC ON) B/W: 0Lux(F1.2,50IRE, AGC ON, IR Leds ON) |
| LENS | MANUAL; |
| AUTO: TYPE:DC/VIDEO; MODE: OPEN/AUTO; SPEED. | |
| SHUTTER/AGC | AUTO/MODE/HIGH LUMINANCE |
| MANUAL: MODE/SHUTTER/AGC | |
| WHITE BALANCE | ATW: SPEED/DELAY CNT/ATW FRAME/ENVIRONMENT |
| PUSH: | |
| USER1: B-GAIN/R-GAIN | |
| USER2: B-GAIN/R-GAIN | |
| ANTI CR | |
| BLC | HLC/OFF |
| PICTURE ADJUSTMENT | MIRROR/BRIGHTNESS/CONTRAST/SHARPNESS/HUE/GAIN |
| ATR | ON: LUMINANCE/CONTRAST |
| OFF | |
| MOTION DET | ON: DETECT SENSE/BLOCK DISP /MONITOR AREA/AREA SEL/TOP/BOTTOM/LEFT/RIGHT |
| OFF | |
| PRIVACY | ON: AREA SEL/TOP/BOTTOM/LEFT/RIGHT COLOR 1/TRANSP/MOSAIC/ |
| OFF | |
| DAY/NIGHT | AUTO: BURST/DELAY CNT/DAY?NIGHT NIGHT?DAY |
| COLOR | |
| B/W | |
| NR | NR MODE/Y LEVEL /C LEVEL |
| CAMERA ID | OFF: |
| ON: CAMERA ID | |
| SYNC | INTERNAL SYNCHRONIZATION |
| LANGUAGE | CHINESE/ENGLISH/FRANCAIS/ESPANOL/DEUTSCH/PYCCKNN/PORTUGUES/JAPANESE |
| Payment Terms | L/C, T/T, Others |
|---|---|
| Minimum Order | 200PCS |
| Lead Time Delivery Time | 15 days |
| Sample Available | Yes |
| Delivery Details | After 100% payment received |
| FOB Port | Zhuhai |
| Loading Info | Vessel |
| Target Market(s) | Africa, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, South Asia, Southeast Asia, Western Europe |
Related products
Multi-camera Monitoring CCTV Cameras - Chinafactory.com
Model Number: Surveillance Camera System-002
Home Security Camera with 7" TFT-LCD receiver, the best CCTV cameras system with fashion design

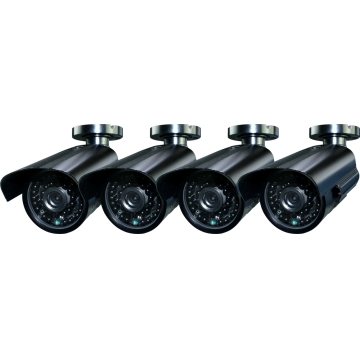

CCTV Camera System C148 x4- Manufacturer Chinafactory.com
