Indoor Color CCD Box Camera- Manufacturer Chinafactory.com
C316146 High resolution color CCD box camera with Sony Effio DSP with Horizontal Resolution 700TVL, Auto IRIS / DC Drive; OSD function
Contact NowIndoor Color CCD Box Camera
| Model: | C316146 |
|---|---|
| Brief Description: | C316146 High resolution color CCD box camera with Sony Effio DSP with Horizontal Resolution 700TVL, Auto IRIS / DC Drive; OSD function |
Key Specification
Feature:
- Indoor use box camera
- Auto IRIS / DC drive
- Sony effio DSP with high resolution
- OSD manual function
Specification:
| Image Sensor | 1/3 Sony EXview HAD CCD II |
| DSP | Effio DSP |
| Effective Pixels | PAL:976(H)*582(V) NTSC:976(H)*494(V) |
| Horizontal Illumination | 700TVL |
| Drive Mode | Auto IRIS/DC Drive |
| Lens Mount | C/CS |
| IR Wave Length | --------- |
| IR Distance | --------- |
| Shutter Speed | PAL:1/50~1/100000s;NTSC:1/60~1/100000s adjustable |
| S/N Ratio | ? 52 dB(AGC OFF) |
| Video Output | 1.0Vp-p,75 ohms ,BNC |
| Minimum Illumination | Color:0.01Lux(F1.2,50IRE,AGC ON) B/W:0Lux(F1.2,50IRE,AGC ON,IR Leds ON) |
| LENS | MANUAL; |
| AUTO: TYPE:DC/VIDEO;MODE :OPEN/AUTO;SPEED. | |
| SHUTTER/AGC | AUTO /MODE /HIGH LUMINANCE |
| MANUAL: MODE/ SHUTTER /AGC | |
| WHITE BALANCE | ATW:SPEED /DELAY CNT /ATW FRAME /ENVIRONMENT |
| PUSH: | |
| USER1:B-GAIN/R-GAIN | |
| USER2:B-GAIN/R-GAIN | |
| ANTI CR | |
| BLC | HLC /OFF |
| PICTURE ADJUSTMENT | MIRROR /BRIGHTNESS /CONTRAST /SHARPNESS /HUE /GAIN |
| ATR | ON:LUMINANCE /CONTRAST |
| OFF | |
| MOTION DET | ON: DETECT SENSE/BLOCK DISP /MONITOR AREA / AREA SEL /TOP/ BOTTOM/LEFT /RIGHT |
| OFF | |
| PRIVACY | ON:AREA SEL /TOP / BOTTOM /LEFT /RIGHT COLOR 1 /TRANSP /MOSAIC / |
| OFF | |
| DAY/NIGHT | AUTO:BURST /DELAY CNT /DAY?NIGHT NIGHT?DAY |
| COLOR | |
| B/W | |
| NR | NR MODE /Y LEVEL /C LEVEL |
| CAMERA ID | OFF: |
| ON:CAMERA ID | |
| SYNC | INTERNAL SYNCHRONIZATION |
| LANGUAGE | CHINESE /ENGLISH /FRANCAIS /ESPANOL /DEUTSCH /PYCCKNN /PORTUGUES /JAPANESE |
| Payment Terms | L/C, T/T, Others |
|---|---|
| Minimum Order | 100PCS |
| Lead Time Delivery Time | 15 days |
| Sample Available | Yes |
| Delivery Details | After 100% payment received |
| FOB Port | Zhuhai |
| Loading Info | Vessel |
| Target Market(s) | Africa, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, South Asia, Southeast Asia, Western Europe |
Related products
Waterproof IR Camera - Manufacturer Chinafactory.com
Model Number: Surveillance Camera System-021
Waterproof IR Camera,PAL:625 lines 50 Field/sec,NTSC:525 lines 60 Field/sec,Auto,PAL 1/50-100,000Sec,NTSC 1/60-1/100,000Sec
Vandal-Proof Color CCD IR Dome Camera - Chinafactory.com
Model Number: Surveillance Camera System-014
Vandal-Proof High Resolution CCD Dome Camera; Sony Effio DSP, 700TVL, Vandal-proof housing IP66

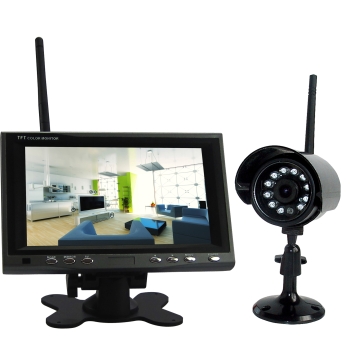

Wireless Baby Monitor Built-in Speaker - Chinafactory.com
Model Number: Surveillance Camera System-004
Real-time high-quality video and audio monitoring
Built-in digital wireless transmission module
Automatic channel switching scheme for avoiding interference
Encrypted digital wireless signal for privacy protection
Control pan & tilt and viewing funct

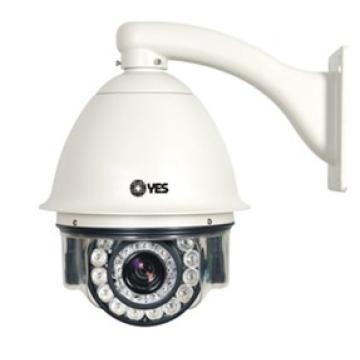

IR Speed Dome Camera - Manufacturer Chinafactory.com
