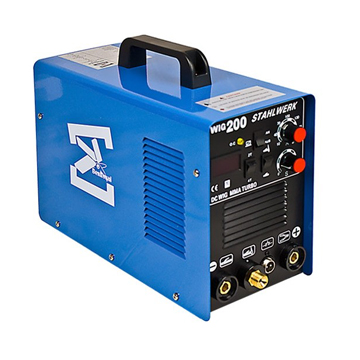

New Inverter DC Pulse TIG MMA Welder TIG-200P

Key Specification

• • 2 Stroke and 4 Stroke – circuit: at 2-stroke, the torch button of the TIG tube package  has to remain pressed and held. Once the button is released the arc is extinguished. At 4-stroke the arc remains stable after pressing. Only by pressing the torch button the arc is extinguished and the current reduction occurs automatically with the gas-run time. Professional settings in which you achieve results of a quality that impress even the professional user.
  • Antistick: prevents annealing of the electrode (less consumable electrodes), because the power is immediately terminated.
  • Hot Start: automatic voltage increase at the start
  • HF Ignition: high-frequency contactless ignition to the workpiece.
  • MMA: manual metal arc welding.
  • TIG tube package with ball joint and with integrated control switch.
  • Adjustable welding current: adjustable between 0 and 200 A (for pulse mode upper value).
  • Automatic slow current reduction after switching off the tube package. Adjustable between 0 - 10 seconds (makes a clean finish, there are no blowholes).
  • Gas preliminary time:: important to protect the weld from air supply and to create a gas atmosphere
  • Gas post flow time: saves the tungsten electrode against excessive wea. and protects the weld from oxidation.
  • Pulse frequency: adjustable between 0,5 - 200 Hz
  • Pulse current: adjustable between 10 % - 90 %
  • Pulse intensity of welding current: adjustable between 20% -60%
  • Gas magnetic valve: will open only when pressing the hand torch or the foot pedal and closes when the welding process is completed.
  • Automatic cooling ventilators.
  • Overheating protection: turns on when the device is overloaded. A red control light turns on, and goes off when the device is cooled
• ~

• ---
